Unit 7
5–8% of examOscillations
Oscillations are motions that repeat, like a mass bouncing on a spring or a swinging pendulum. You'll learn what makes motion simple harmonic, how to find the period of a spring or a pendulum, how to read and sketch position, velocity and acceleration graphs, and how energy moves back and forth between kinetic and potential while the total stays the same.
Study this unit
Flashcards (25)Practice questions (54)Physics 1 must-know sheetFree-response questions on this unit
Write your own answer, then score it with the rubric or with AI.
Big ideas
- A restoring force proportional to displacement produces simple harmonic motion
- The period depends on mass and spring constant, or pendulum length and g, but not on amplitude
- Position, velocity and acceleration follow sine and cosine curves
- Speed is greatest at equilibrium; acceleration is greatest at the turning points
- Energy swaps between kinetic and potential, but the total stays constant

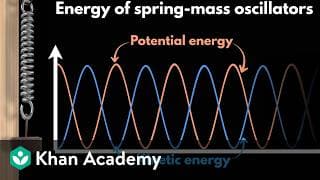

Full unit reviews
Longer videos that cover the whole unit. Good for a first pass or a final review.
Topics

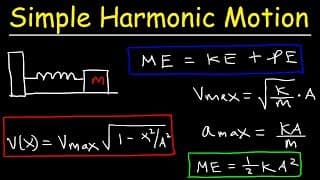

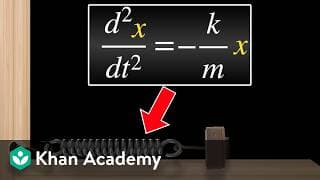

Simple harmonic motion (SHM) happens when a restoring force pulls an object back toward its equilibrium position with a strength proportional to how far it's displaced, like an ideal spring with F = −kx. A pendulum swinging through small angles is very close to SHM because the restoring torque on it is nearly proportional to its angle.
Key terms
- simple harmonic motion
- restoring force
- equilibrium position
- Hooke's law
- simple pendulum
A few quick questions on this topic, with the answers explained.

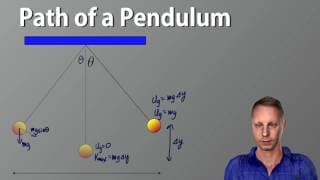

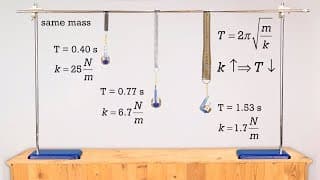

The period T is the time for one full cycle and the frequency f is the number of cycles per second, so T = 1/f. A mass on a spring has T = 2π√(m/k) and a pendulum at small angles has T = 2π√(L/g), so a pendulum's period doesn't depend on its mass, and neither period depends on the amplitude.
Key terms
- period
- frequency
- hertz
- spring constant
- pendulum length
A few quick questions on this topic, with the answers explained.

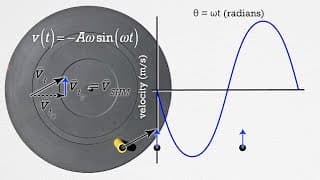

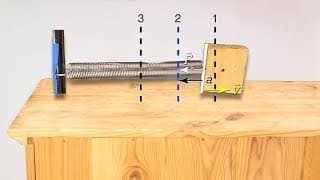

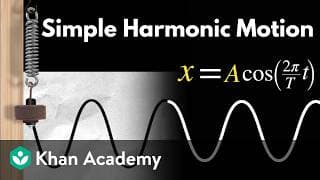

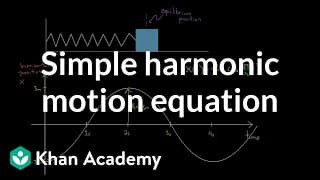

An object in SHM has position x = A cos(2πft) (or the sine version), so its position, velocity and acceleration graphs are all sinusoidal. At equilibrium its speed is greatest and its acceleration is zero; at the turning points its speed is zero and its acceleration is greatest, pointing back toward equilibrium.
Key terms
- amplitude
- sinusoidal graph
- turning point
- maximum speed
- maximum acceleration
A few quick questions on this topic, with the answers explained.

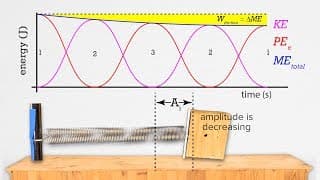

An oscillator's total mechanical energy stays constant as it shifts between kinetic and potential: at the turning points the kinetic energy is zero, and at equilibrium the kinetic energy is greatest and the potential energy is lowest. For a mass on a spring the total energy is ½kA², so doubling the amplitude makes the total energy four times as large.
Key terms
- mechanical energy
- kinetic energy
- spring potential energy
- amplitude
- conservation of energy
A few quick questions on this topic, with the answers explained.
