Unit 4
10–20% of examLinear Momentum
Momentum is mass times velocity, and it's the key to collisions and explosions, where forces are large and brief. A net external force changes a system's momentum at the rate , and impulse, the integral of force over time, equals the total change. When the net external force on a system is zero, its total momentum stays constant, which lets you find velocities just before and after a collision.
Study this unit
Flashcards (28)Practice questions (59)Physics C: Mechanics must-know sheetFree-response questions on this unit
Write your own answer, then score it with the rubric or with AI.
- Mathematical routines (MR)Bullet embedding in a block on a spring10 points · about 22 minutes
- Translation between representations (TBR)Particle with a cubic position function12 points · about 28 minutes
- Translation between representations (TBR)Cart pushed by a force that varies with time12 points · about 28 minutes
- Experimental design and analysis (LAB)Testing momentum conservation with sticky carts10 points · about 27 minutes
- Qualitative/quantitative translation (QQT)Sand pouring onto a moving conveyor belt8 points · about 18 minutes
Big ideas
- Momentum is a vector:
- Impulse equals change in momentum
- With no net external force, a system's total momentum stays constant
- Kinetic energy is conserved only in elastic collisions
- The center of mass of an isolated system moves at constant velocity
Full unit reviews
Longer videos that cover the whole unit. Good for a first pass or a final review.
Topics
Linear momentum, , is a vector that points the same way as the velocity. It's the natural tool for collisions, where objects push on each other much harder than any outside force does, and explosions, where forces inside a system push its parts apart. Because you only compare the moments just before and just after, you can treat each object as a single point.
Key terms
- linear momentum
- vector
- collision
- explosion
- object model
A few quick questions on this topic, with the answers explained.

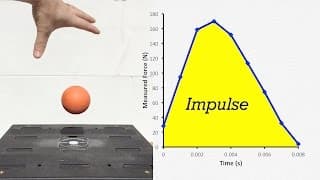

The net external force on a system equals its rate of change of momentum, , so it is the slope of a momentum–time graph. Impulse, , is the area under a force–time graph, and the impulse–momentum theorem says it equals the change in momentum, . The same idea covers a system moving at constant velocity while its mass changes, where .
Key terms
- impulse
- impulse–momentum theorem
- force–time graph
- change in momentum
- rate of change of momentum
A few quick questions on this topic, with the answers explained.

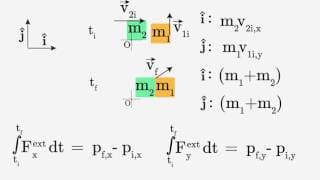

A system's total momentum is the sum of its parts' momenta, and its center of mass moves at . If the net external force on the system is zero, total momentum stays constant: by Newton's third law, any momentum one object gains, another object in the system loses. Choosing a system where this holds lets you find velocities just before and after collisions or explosions in one or two dimensions.
Key terms
- conservation of momentum
- isolated system
- center-of-mass velocity
- net external force
- two-dimensional collision
A few quick questions on this topic, with the answers explained.
In an elastic collision the system's total kinetic energy is the same before and after, even though individual objects can gain or lose kinetic energy. In an inelastic collision some kinetic energy is turned into other forms, like thermal energy and sound, and in a perfectly inelastic collision the objects stick together and move with one velocity. Momentum is conserved in every type as long as no net external force acts.
Key terms
- elastic collision
- inelastic collision
- perfectly inelastic collision
- kinetic energy
- thermal energy
A few quick questions on this topic, with the answers explained.
